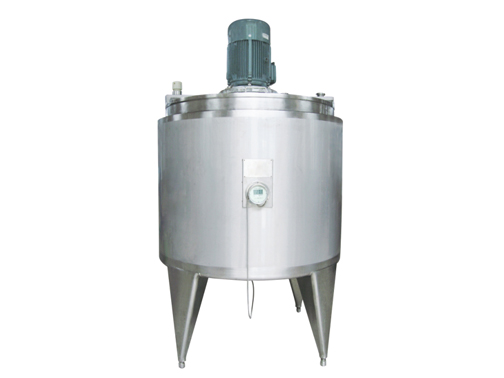

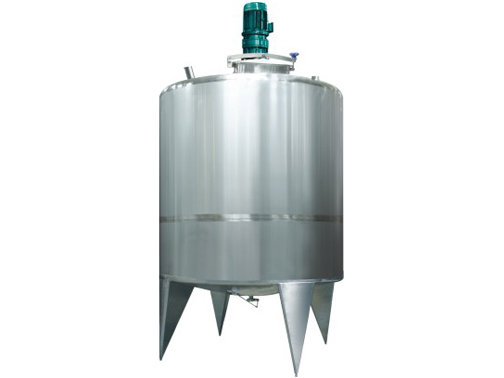

High Speed Shearing/Emulsification Tank
High speed shearing emulsification tank is one of the most advanced mixing equipment in China presently, which is widely used in dairy, beverage and other liquid food industry. It absorbed foreign advanced technology, and with specialstirrer structure, unique mixing and emulsification function.
Application Fields
It can be used in emulsion reagent, paint, dye, paper, pesticide etc. chemical and light industry, which can fastmixing, dispersing, emulsifying, homogenizing, crushing, suspending and dissolving liquid-liquid, liquid-solid product.
Equipment characteristics

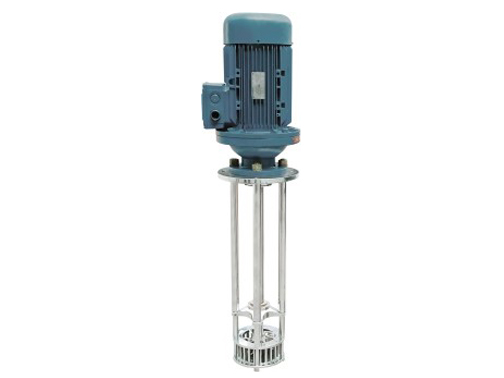

- The stirrer is composed of joint rotor and stator two parts, rotor high speed revolution, stator fixed. When high speed emulsifier working, it throwing rotor surrounding product at high speed to stator, and through stator tooth interval, to emulsify, collide and crush between rotor and stator, thus to realize high speed emulsification. This equipment has many functions like mixing, emulsification, homogenization, dissolving and crushing etc.
- Easy and flexible operation, three structure: single layer, double layer with insulation, three layer.
Technical parameters
|
Model
|
Effective volume(L)
|
Inner diameter(mm)
|
Total height(mm)
|
Emulsifier
Motor power(KW)
|
Emulsifier rotary speed(r/m)
|
|
CHTY-600
|
600
|
800
|
2140
|
7.5
|
2900/1450
|
|
CHTY-1000
|
1000
|
1050
|
2380
|
11
|
2900/1450
|
|
CHTY-1500
|
1500
|
1180
|
2550
|
15
|
2900/1450
|
|
CHTY-2000
|
2000
|
1340
|
2760
|
18.5
|
2900/1450
|
|
CHTY-3000
|
3000
|
1420
|
2870
|
22
|
2900/1450
|
